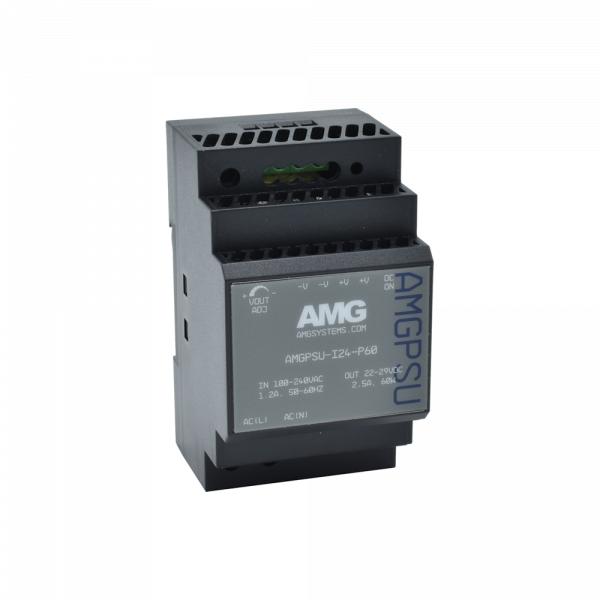

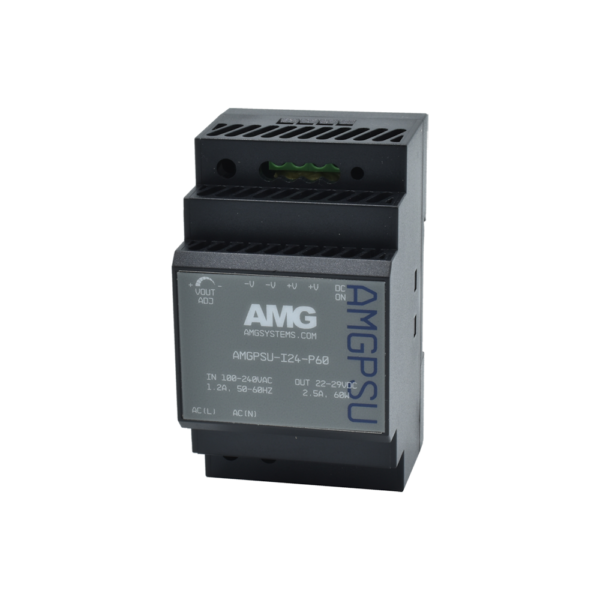

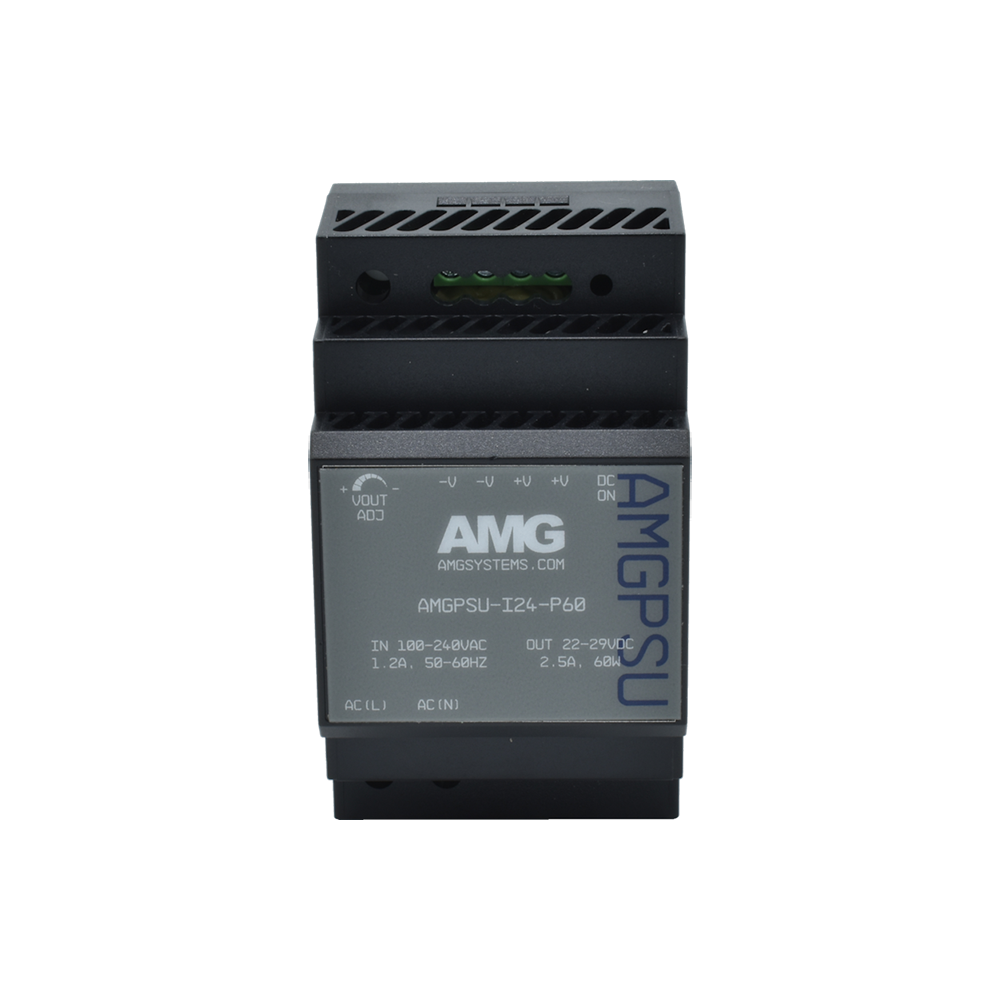

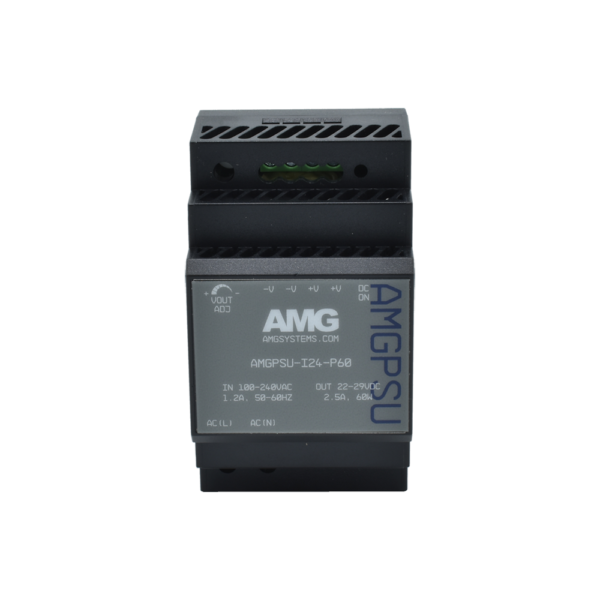

24 VDC, 60W (2.5A) Industrial Power Supply, DIN-Rail Mounting, -40°C to +70°C (Adjustable 22-29 VDC)
Features
  • Compact size – ideal for confined spaces, including camera poles and roadside cabinets
  • -40 to +70°C temperature maintains performance in extreme conditions
  • DIN-Rail mountable – quick to install and remove for maintenance
  • High efficiency – up to 91% typical
  • Universal 85-264VAC or 120-370VDC input range
  • Output short circuit, over-current and over-voltage protection included as standard
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple & noise
  • Withstand 300VAC surge input for 5 seconds
  • EN62368 & UL safety approved
  • AMG 3 Year Support Warranty
UGS : 5060811141212 Catégories : , ,
Output Voltage 24 VDC
Output Current 2.5A @ 24 VDC
Output Power 60W
Voltage Trim Range 21.6 to 29.0 VDC
Efficiency >91%
Mounting Type DIN Rail
MTBF (Hours) 300000
Power Consumption (W) 0
Power Inputs 1
Power Interface 2 Pin Terminal Block
Input 1 Voltage 85-264 VAC

120-370 VDC

Heat Dissipation at Max Load (BTU/h) 205
Operating Temperature -40°C to +70°C
Storage Temperature -40°C to +85°C
IP Rating IP20
Product Class Industrial Grade
Warranty AMG 3 Year Support Warranty
